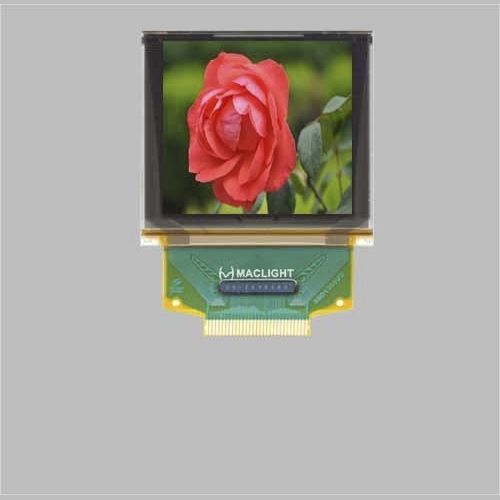

OLED display module MLD150-128128C
colorgraphic128 x 128

OLED display module - MLD150-128128C - Maclight Display Co., Limited - color / graphic / 128 x 128
OLED display module - MLD150-128128C - Maclight Display Co., Limited - color / graphic / 128 x 128
Add to favorites
Compare this product


Characteristics

Screen type
OLED
Type
color, graphic
Format
128 x 128
Screen size
1.51"
Applications
industrial
Interface
SPI
Configuration/mounting
portable, outdoor
Other characteristics
wide-viewing angle, high-contrast, high-brightness, smart
Width

33.8 mm
(1.3307 in)

Height

34 mm
(1.3386 in)

Description

Full color OLED screen 1.5inch 128x128 pixels is a color oled display module, 128x128 pixels color oled display screen. The 1.5 inch full color oled display, is a graphic passive matrix oled display, it have 128x128 dots, wide viewing angle, wide temperature, high brightness, high contrast, fast response time. Color OLED display module screen-1.5 inch oled screen: because it is OLED display module, full color oled could be emitting light by itself, no need for backlight, so oled display module would be thinner than tft lcd module, and it don't like tft lcd, oled display have no viewing angle limited, OLED display is wide/full viewing angle, oled display have excellent display performance in all viewing angle. 1.5’’ 128x128 OLED lcd display module could be displayed in wide temperature, its working temperature could be reached to -40 degree, and 80 degree. 1.5 inch OLED screen 128x128 dots is the best display solution in the outdoor display, such as sunlight environment, and also for industrial or medical application that need the wide viewing angle and high brightness display. And it’s often used for smart watch, MP3, function cellphone, portable health device and many others application.

Catalogs

No catalogs are available for this product.

See all of Maclight Display Co., Limited‘s catalogs

Other Maclight Display Co., Limited products

OLED display module
