TFT LCD display module

IPSTNcapacitive touch screen

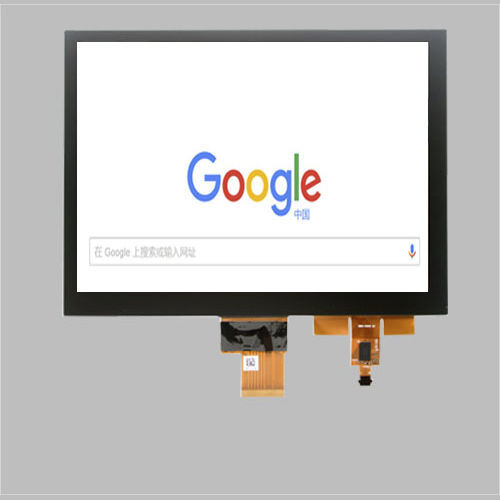

This is 8 inch IPS tft capacitive touch screen, 1024x678 resolution, the tft screen is LVDS interface, capacitive touch panel is I2C interface, the tft brightness is 400 nits, after adding the capacitive touch, the tft capacitive touch screen brightness is 350 nits (typ), ALL viewing angle. the projected capacitive touch is attached on the tft lcd screen by frame bonding. It can be used in Medical application, automotive, industrial application, pos machine, electronic meter application etc. TFT with CTP 8 inch IPS tft lcd module with capacitive touch panel screen 1024(RGB)X768 LVDS interface(lcd) I2C interface(ctp) G+G (capacitive touch) What is tft capacitive touchscreen: TFT capacitive touch screen means the tft lcd screen attached with projected capacitive touch screen. we also call it tft with CTP or TFT with PCAP, the projected capacitive touch panel can be stuck on the tft lcd screen with optical bonding and frame bonding. to the TN tft lcd display, the capacitive touch attached way would be frame bonding, if for IPS TFT lcd screen, the PCAP can be attached by optical bonding way, the optical bonding capacitive touch can be higher transparencty ratio and less light scattering than frame bonding capacitive touch panel. The projected capacitive touch screen can be in USB interface and I2C interface, it is easy to connect to the LCD controller board.
