LED display module MLT070W50-T21TFT LCDresistive touch screen800 x 480
Add to favorites
Compare this product
Characteristics
- Screen type
- LED, TFT LCD, resistive touch screen
- Format
- 800 x 480
- Screen size
- 7"
- Interface
- RGB, VGA
- Other characteristics
- electronic
- Width
164.9 mm
(6.4921 in)- Height
100 mm
(3.937 in)
Description

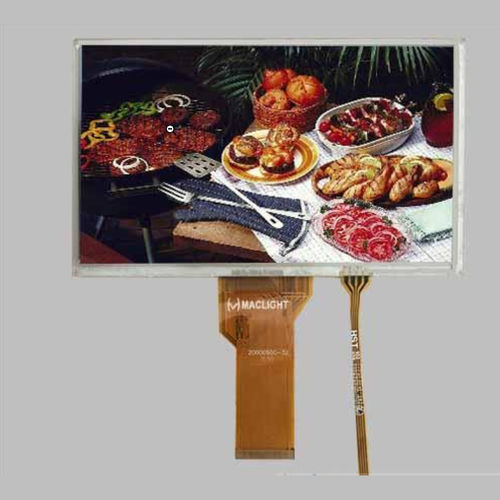

This is 7.0 inch tft lcd display module with resistive touch panel, WVGA resolution (800x480 pixels)with 80mm long FPC tail than AT070TN90 LCD, 800x480 resolution, RGB interface, 400 cd/m2 brightness. 4 wires resistive touch FPC is on the bottom side of lcd, brightness is 400 nits after adding resisitive touch, backlight is 3x9 led chips. this LCD could be compatible with AT070TN92 LCD with touch.
WVGA tft display means the tft lcd display with WVGA resolutioin, WVGA means Wide Video Graphics Array, it is 800x480 resolution, it is the resolution that higher than VGA 640x480 resolution, wvga TFT display is widely used in many electronic devices application
