Color display module MLT050W40-T25LCD/TFTLEDresistive touch screen
Add to favorites
Compare this product
Characteristics
- Type
- color, LCD/TFT, LED, resistive touch screen
- Format
- 800 x 480
- Screen size
- 5"
- Other characteristics
- RGB
- Width
120.7 mm
(4.752 in)- Height
75.8 mm
(2.9843 in)
Description

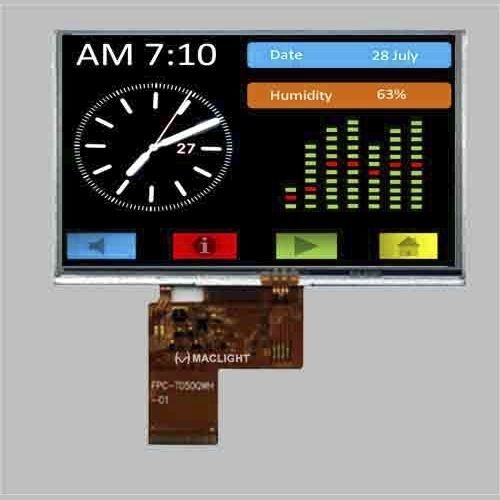

This 5" tft lcd module is with two ic driver solution, ILI6122 and ILI5950, 800RGB*480 dots resolution, FPC is 40-pin RGB interface, 12 o'clock viewing angle, 300 nits brightness after with 4 wires resistive touch panel, backlight with 6x2 led chips. working temperature: -20~70 degree.
Sizes: 5" tft lcd module(diagonal)
Display color: 16.7M
Viewing direction: 12 o'clock
Operating temperature: -20~70 degree
Storage temperature: -30~80 degree
IC driver: ILI6122 + ILI5950
Backlight: 6x2 leds white color
Interface: 40-pin RGB 24 bits
Outline dimension: 120.7*75.8*3.1 mm
Active area: 108 * 64.8 mm
