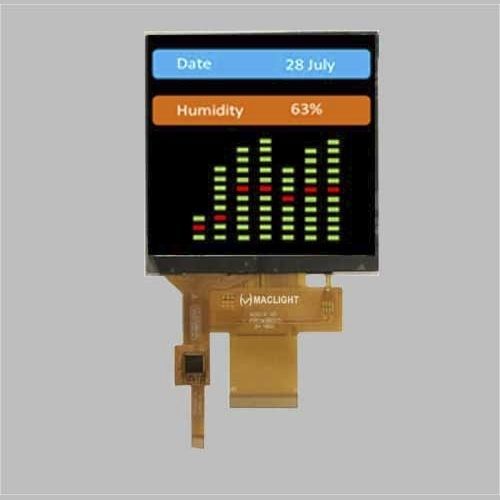

TFT LCD display module MLT040R45-CT1

IPScapacitive touch screencolor

TFT LCD display 4.0 inch is a color IPS tft lcd display panel which is made with 480RGBx480 resolution in square display area. This square lcd 4.0’’ IPS tft lcd panel MLT040R45-CT1 is composed of a TFT-LCD panel, driver IC, FPC, a backlight unit and capacitive touch panel. This 4.0 IPS tft lcd screen is with full viewing angel display, and built in with ST7701 controller IC, it supports SPI/RGB interface. Square display 4.0 inch tft lcd module made of 480x480 pixel, ips tft lcd with CTP touch screen, square tft lcd display, it could be used in s central home control or building central control system, and standard 86 type box and other square display application If the luminance is not enough for your requirement, please feel free to contact us, we could custom make the backlight to upgrade the brightness up to 1,000 nits. What is Square lcd display? Square lcd display means the lcd display area in square sizes, such as 1.54" square lcd display that with 240x240 pixels, or 4.0" square display with 480x480 pixels, the square screen have the same pixels quantity on column and row, that make the display could display actual square image or round display image via the square display. A square lcd module doesn't means the outline dimensions is also in square shape, because as the lcd module, the lcd always would have an step on the edge of lcd, the step is area for the lcd pin out to the controller, or is the place that located the LCD lcd ic driver, so for the square lcd with with square display area, the LCD outline shape can not be in square shape because the lcd step on the square lcd screen.
