TFT LCD display module MLD113-16080C
OLEDcolorgraphic

TFT LCD display module
TFT LCD display module
Add to favorites
Compare this product


Characteristics

Screen type
TFT LCD, OLED
Type
color, graphic
Format
160 x 80
Screen size
1.14"
Applications
industrial
Configuration/mounting
outdoor
Width

16.14 mm
(0.6354 in)

Height

32.3 mm
(1.2717 in)

Description

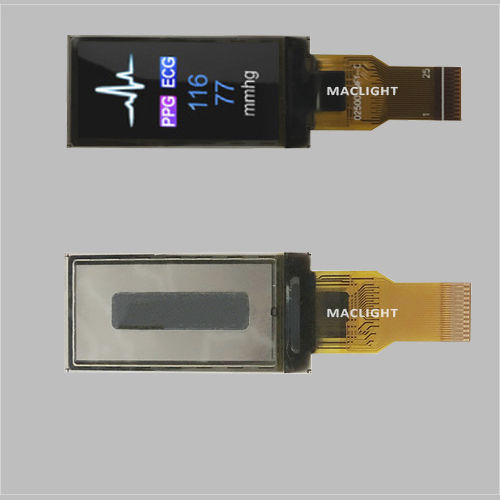

OLED 1.13 inch is a color graphic oled display, 160RGBx80 pixels oled display. The 1.13 inch color oled module, is a graphic passive matrix oled display, with FPC connection, it is a COG structure OLED display, it have 160RGBx80 dots, white on black, wide viewing angle, wide temperature, high brightness, high contrast, fast response time. Color oled display module characters-1.13 inch oled: because it is OLED display module, oled could be emitting light by itself, no need for backlight, so oled display module would be thinner than tft lcd module, and it don't like tft lcd, oled display have no viewing angle limited, OLED display is wide/full viewing angle, oled display have excellent display performance in all viewing angle. 1.13’’ color OLED lcd display module could be displayed in wide temperature, its working temperature could be reached to -40 degree, and 70 degree. 1.13’’ color 160RGBx80 OLED screen is the best display solution in the outdoor display, such as sunlight environment, and also for industrial or medical application that need the wide viewing angle and high brightness display. And it’s often used for smart watch, MP3, function cellphone, portable health device and many others application.
