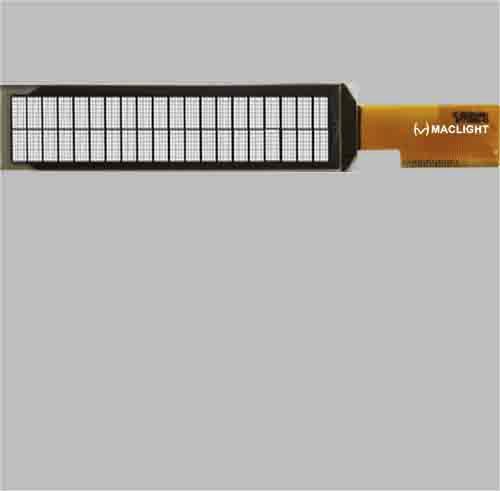

OLED display MLD202A
monochrome20 x 22.9"

OLED display
OLED display
Add to favorites
Compare this product


Characteristics

Screen type
OLED
Type
monochrome
Format
20 x 2
Screen size
2.9"
Applications
industrial, information, control
Interface
SPI, I2C
Configuration/mounting
outdoor
Length

84.5 mm
(3.327 in)

Width

19.28 mm
(0.7591 in)

Height

2 mm
(0.0787 in)

Description

20x2 character oled display, it is 2.93'' oled module display. it is with US2066 controller ic character oled panel Parallel/SPI/I2C oled screen Product description: 2.93 inch oled display module,20x2 character oled display,this oled module sizes is 2.93 inch in diagonal, white/green/yellow color available for 20x2 character OLED 2.93 inch 20x2 character oled display module introduction: OLED 20x2 character is a monochrome character oled display, 20x2 characters oled glass display. The 2.93 inch oled module, is a character passive matrix oled display, with FPC connection, it is a COG structure OLED display, it have 20x2 characters, blue color available, wide viewing angle, wide temperature, high brightness, high contrast, fast response time. oled display module characters-2.93inch oled 20x2 character: because it is OLED display module, oled could be emitting light by itself, no need for backlight, so oled display module would be thinner than tft lcd module, and it don't like tft lcd, oled display have no viewing angle limited, OLED display is wide/full viewing angle, oled display have excellent display performance in all viewing angle. 20x2 characters OLED display module could be displayed in wide temperature, its working temperature could be reached to -40 degree, and 80 degree. 2.93 inch 20x2 character OLED display module is the best display solution in the outdoor display, such as sunlight environment, and also for industrial or medical application that need the wide viewing angle and high brightness display. And it’s often used for smart watch, MP3, function cellphone, portable health device and many others application.
