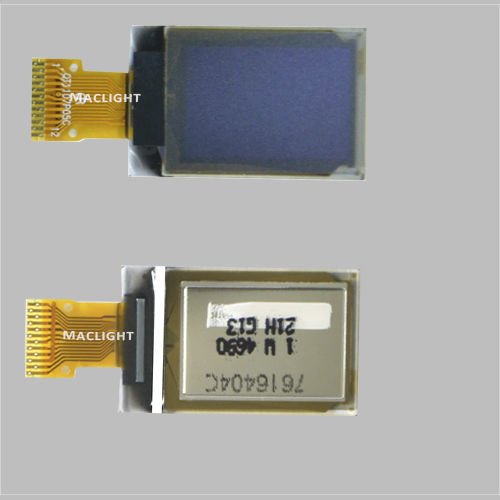

0.73" display module MLD073-12888A
TFT LCDOLEDmonochrome

0.73" display module - MLD073-12888A - Maclight Display Co., Limited - TFT LCD / OLED / monochrome
0.73" display module - MLD073-12888A - Maclight Display Co., Limited - TFT LCD / OLED / monochrome
Add to favorites
Compare this product


Characteristics

Screen type
TFT LCD, OLED
Type
monochrome, graphic
Format
128 x 88
Screen size
0.73"
Applications
industrial, information
Interface
SPI, I2C
Length

14.6 mm
(0.575 in)

Width

22.34 mm
(0.8795 in)

Height

1.2 mm
(0.0472 in)

Description

0.73 inch miro oled display, 0.73'' oled module, 0.73'' oled panel. 128x88 pixels oled module SH1107 driver oled screen SPI/I2C interface oled panel Product description: 0.73 inch serial oled display module, 128x88 pixels, this oled display size is 0.73 inch,white color for 0.73 inch oled, SPI/I2C interface, SH1107 driver IC oled screen. 0.73 inch graphic oled display module introduction: Graphic OLED 0.73 inch is a monochrome graphic oled display, 128x88pixels oled glass display. The 0.73 inch oled module, is a graphic passive matrix oled display, with FPC connection, it is a COG structure OLED display, it have 48x64 dots, white color available, wide viewing angle, wide temperature, high brightness, high contrast, fast response time. OLED display module graphic-0.73 inch oled: because it is OLED display module, oled could be emitting light by itself, no need for backlight, so oled display module would be thinner than tft lcd module, and it don't like tft lcd, oled display have no viewing angle limited, OLED display is wide/full viewing angle, oled display have excellent display performance in all viewing angle. 0.73’’ OLED display module could be displayed in wide temperature, its working temperature could be reached to -40 degree, and 80 degree. 0.73 inch graphic mono OLED display module is the best display solution in the outdoor display, such as sunlight environment, and also for industrial or medical application that need the wide viewing angle and high brightness display. And it’s often used for smart watch, MP3, function cellphone, portable health device and many others application.

Catalogs

No catalogs are available for this product.

See all of Maclight Display Co., Limited‘s catalogs

Other Maclight Display Co., Limited products

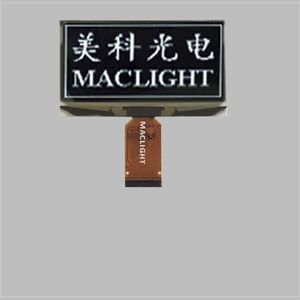

OLED display module
