0.83" display module MLD083-9639D
OLEDmonochrome39 x 96

0.83" display module
0.83" display module
Add to favorites
Compare this product


Characteristics

Screen type
OLED
Type
monochrome
Format
39 x 96
Screen size
0.83"
Applications
industrial
Interface
SPI, I2C
Other characteristics
wide-viewing angle

Description

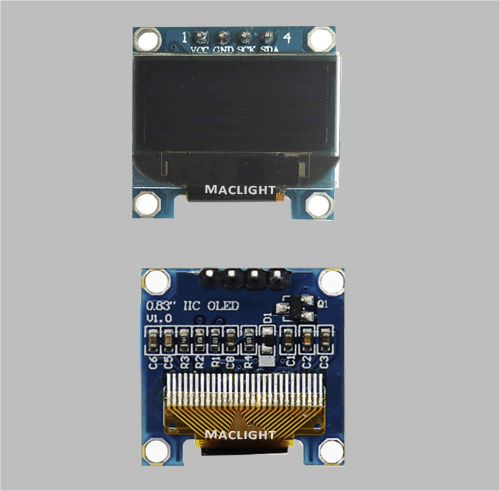

0.83 inch arduino oled module, 0.83'' oled module with CPB, 96x39 dots oled, white & blue color available,wide viewing angle oled. Product description: 0.83 inch Arduino oled display module,96x39 dots,this oled module sizes is 0.83 inch in diagonal, white & blue color available for 0.83" OLED, 39X96 pixel, wide viewing angle oled. 0.83" display OLED 0.83 inch oled display module introduction: This is 0.83 inch Arduino oled module, with FPC connection, it have 96x39 dots, two color available, light blue and white color available, SSD1306 IC driver, wide viewing angle, wide temperature, high brightness, high contrast. OLED display module characters-0.83 inch oled: because it is OLED display module, oled could be emitting light by itself, it don't need backlight, so oled display module would be thinner than tft lcd module, and it don't like tft lcd, oled display have no viewing angle limited, OLED display is wide/full viewing angle, oled display have excellent display performance in all viewing angle. OLED display module could be displayed in wide temperature, its working temperature could be reached to -40 degree, and 80 degree. OLED display module is the best display solution in the outdoor display, such as sunlight environment, and also for industrial or medical application that need the wide viewing angle and high brightness display.
