5.6" display panel MLT056V50-AV5

TFT LCDIPScolor

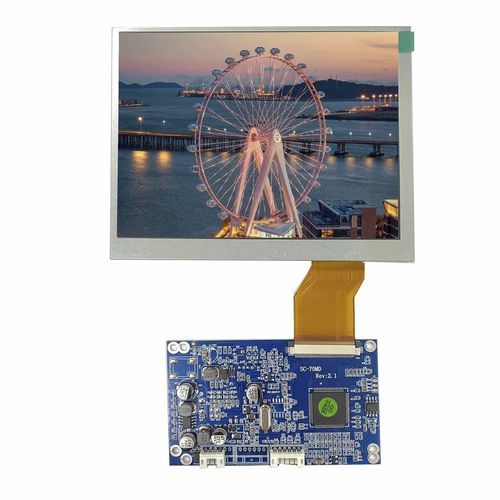

This is 5.6 inch tft lcd module, it is with 640x480 resoluition, and a A/D driver board. The display is IPS tft lcd panel, and it is with JD9168S IC driverIC. 5.6 inch tft lcd module 640x480 with VGA driver board, one channel video or VGA signal input, 12V power input, 4:3 aspect ration, Application: access control system or door control system. This 5.6’’ tft LCD MLT056V50-AV5 is often used for access control system or door control systeme, security which requires camera, video or VGA display image. 5.6’’ tft display module key parameters: (P/N: MLT056V50-AV5) Display Size 5.6 inch tft (Diagonal) Resolution 640(RGB)X480 Module Dimension 126.50(W)x 100.00(H)x5.70(T) mm Active Display Area 115.2 (W)×86.4 (H) mm Viewing Direction ALL LED Backlight Color White LED Driver IC JD9168S Interface Video/VGA Luminance 450 nits Power +12V
