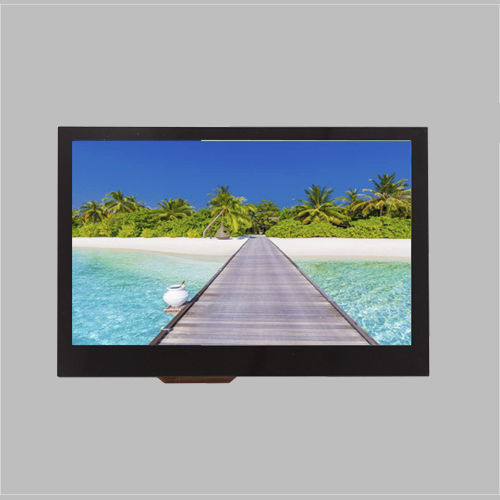

Sunlight-readable display panel MLT043R40-CT42

TFT LCDIPScapacitive touch screen

MLT043R40-CT42 4.3 inch high brightness tft lcd module, it is composed of a TFT-LCD panel,driver IC, FPC, a back light, CTP unit. The 4.3'' display area contains 480 x 272 pixels and can display up to 16.7M colors. This product accords with RoHS environmental criterion. It is IPS tft lcd, all viewing angel and sunlight readable tft lcd, 850 nits brightness after adding capacitive touch panel. LCD driver IC is ST7283, and CTP IC is FT5446. MLT043R40-CT42 is with RGB interface, CTP is I2C interface. The 4.3’’ Sunlight readable tft display is often used for any embedded systems, industrial device, security and hand-held equipment which requires display in high quality and outdoor application. 4.3’’ sunlight readable tft display module with CTP key parameters: Display Size 4.3 inch tft (Diagonal) Resolution 480(RGB)X272 Module Dimension 105.50(W)x 67.20(H)x5.0(T) mm Active Display Area 95.04 (W)×53.86 (H) mm Viewing Direction ALL Driver IC LCD:SC7283 CTP:FT5446 LED Backlight Color White LED 8X2 Interface LCD: RGB CTP: I2C Luminance 850 nits Touch screen With CTP We could support to custom make the LCD, brightness or others base on your requirements. If would like to know more details about Maclight, please contact us by email: sales@szmaclight.com
