Gear pump C7-51

oilmanualhand-priming

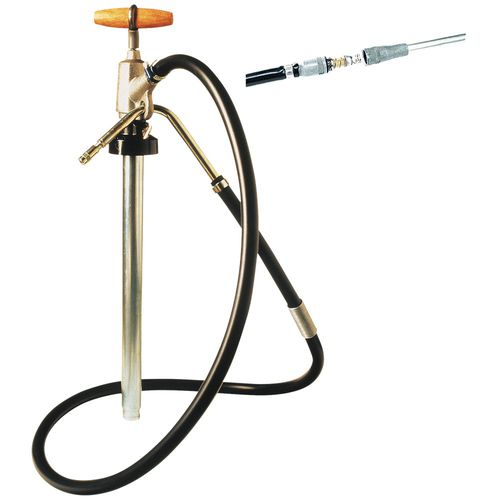

The C7-51 hand operated oil pump with ATF strainer is suitable for use with a wide range of mineral oils. It is ideal for pumping gear oils and transmission fluids up to SAE 140. The C7-51 is supplied with three bung adapters to suit various containers from 15-25L. The C7-51 also features a built in nozzle holder, 1.8m delivery hose, delivery spout and a manual non-drip nozzle complete with manual shut off. Technical Specifications Wetted components - Aluminium, steel, viton, delrin and zinc Compatible fluids - kerosene, two stroke mix, lubricating oils up to SAE140 Pump output: 100ml/stroke 1.8m rubber/nitrile delivery hose Compatible with most drum sizes from 15-25L CF strainer for ATF & hydraulic oils Features & Benefits Includes CF strainer - For ATF & hydraulic oils Supplied with 1.8m delivery hose - For easy gearbox and diff filling Suitable for oils up to SAE140 viscosity Delivers up to 100ml on the down stroke - For easier dispensing Delivery spout, built-in nozzle holder and manual non-drip nozzle - No spillage Comfortable wood handle Durable construction - Built to last Supplied with 3 bung adaptors - Fits a wide range of different types of containers from 15-25L Fully serviceable - Longer service life Package Includes C7 pump CF strainer 1.8m delivery hose with manual shut-off nozzle 3x bung adaptors to suit 15-25L containers Recommended to be used with Replacmeent 1.8m hose, nozzle & clamp set is available (AG88S) The C7 pump can be purchased without strainer (C7-01) Underground mine zinc model available (C7Z-01)
