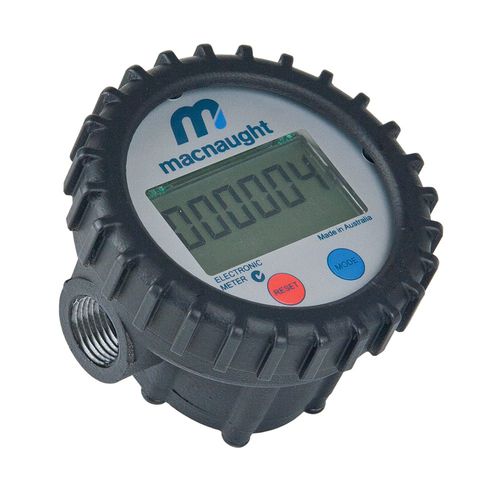

Batch meter IM012E-01digitalelectronichydraulic
Add to favorites
Compare this product
Characteristics
- Type
- batch
- Display
- digital
- Technology
- electronic, oval gear, hydraulic
- Applications
- oil
- Other characteristics
- in-line
Description
In-line oval gear meter with electronic register designed to measure lubricating oils. Flow rate up to 30L/min. Accurate reading to +/- 0.5% with maximum pressure to 6,900 kPa (1,000 psi). Large LC display shows batch and cumulative totals. Fitted with 1/2" BSP(F) ports.
Technical Specifications
Digital display showing both cumulative & push-button reset batch totals
Suitable for oils up to SAE 140, automatic trans ?uid, engine oil, gear oil, hydraulic oil coolant, diesel, kerosene
Flow rate up to 1 – 30LPM
Accurate reading to +/-0.5% with maximum pressure to 6,900kPa (1,000psi)
1/2” BSP(F) inlet/outlet ports
6-digit digital display resettable batch totaliser, resettable and non-resettable totals ?ow rate mode
