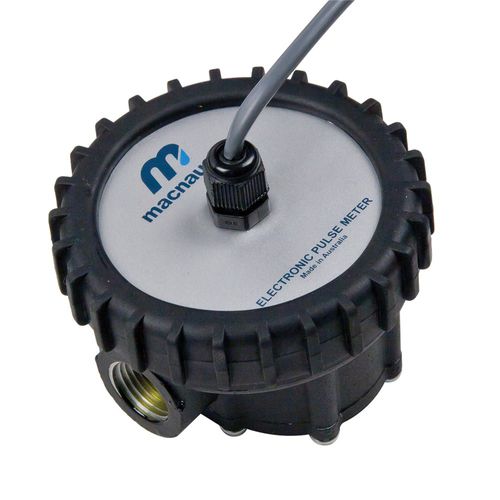

Hydraulic meter IM019P-01

oval gearoilwith pulse output

In-line oval gear meter with pulse output only, designed to measure lubricating oils. Flow rate up to 80L/min. Accuracy is around +/- 0.5% of reading with maximum pressure to 10,350 kPa (1,500 psi). Fly Lead is included to allow connection to other devices. Fitted with 3/4" BSP(F) ports. Technical Specifications IM019 meter with pulse output only Suitable for oils up to SAE 140, automatic trans ?uid, engine oil, gear oil, hydraulic oil coolant, diesel, kerosene Includes 1m ?y lead either reed switch and/or half effect sensor Flow range up to 3 – 80LPM Accurate reading to +/- 0.5% with maximum pressure to 10,350kPa (1,500psi) 3/4” BSP(F) inlet/outlet ports
