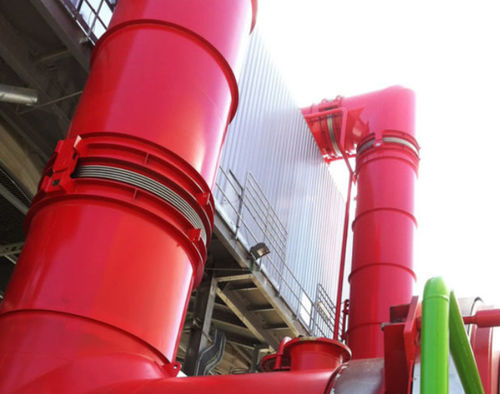

Metal pipe expansion joint M series
roundflangeweld-on

metal pipe expansion joint
metal pipe expansion joint
metal pipe expansion joint
metal pipe expansion joint
metal pipe expansion joint
metal pipe expansion joint
Add to favorites
Compare this product


Characteristics

Material
metal
Configuration
round
Installation system
flange, weld-on
Applications
for pipes
Other characteristics
hinged
Nominal diameter

2,400 mm
(94.49 in)

Operating temperature

343 °C, 538 °C, 729 °C
(649.4 °F, 1,000.4 °F, 1,344.2 °F)

Length

1,500 mm
(59.06 in)

Description

These expansion joints are made of one single bellows element fitted with welding ends or flanges plus a system of articulated supports which allow for angular movement in one plane only. The hinge mechanism is designed to accept full pressure thrust. These units do not allow axial movement however, some types of hinge systems can be provided with holes for the hinge pin that are slotted to allow limited axial displacement. These “slotted hinge” types can not resist the pressure thrust forces and therefore proper anchorage must be provided. MWP Hinged expansion joint with welding ends MFP Hinged expansion joint with flanges. Two MWP/MFP Hinged Expansion Joints or one single MWY/MFY double Expansion Joint can be used to absorb the thermal expansion in a Z-shaped section of piping which only occurs in one plane. In the case of pure angular movement these Expansion Joints can be used to absorb expansion in a specific section of piping.
