Metal pipe expansion joint M series
roundsquareflange

metal pipe expansion joint
metal pipe expansion joint
metal pipe expansion joint
metal pipe expansion joint
metal pipe expansion joint
metal pipe expansion joint
Add to favorites
Compare this product


Characteristics

Material
metal
Configuration
round, square
Installation system
flange, weld-on
Applications
for pipes
Other characteristics
hinged
Nominal diameter

2,200 mm
(86.61 in)

Operating temperature

130 °C
(266 °F)

Description

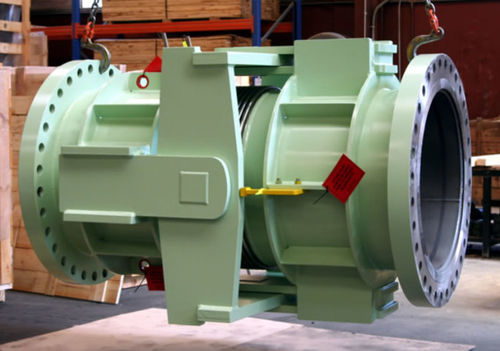

Gimbal Expansion Joints are designed to allow angular movement in any plane by the use of two pairs of hinges affixed to a common floating gimbal ring. The gimbal ring, hinged and pins are designed to restrain the pressure thrust due to internal pressure and shear forces. A gimbal ring is either round or square. For round gimbals the torsional moment shall be considered and for square gimbals the instability due to the bending shall be considered. MWC Gimbal expansion joint with welding ends. MFC Gimbal expansion joint with flanges.
