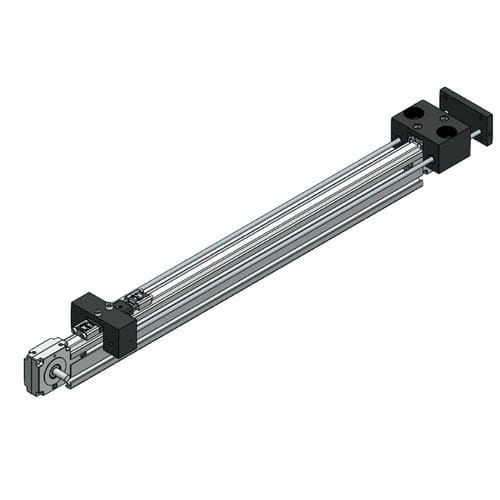

Linear actuator MSA-BT1
hydraulicpneumaticbelt-driven

Linear actuator - MSA-BT1 - Macron Dynamics - hydraulic / pneumatic / belt-driven
Linear actuator - MSA-BT1 - Macron Dynamics - hydraulic / pneumatic / belt-driven
Linear actuator - MSA-BT1 - Macron Dynamics - hydraulic / pneumatic / belt-driven - image - 2
Linear actuator - MSA-BT1 - Macron Dynamics - hydraulic / pneumatic / belt-driven - image - 3
Linear actuator - MSA-BT1 - Macron Dynamics - hydraulic / pneumatic / belt-driven - image - 4
Linear actuator - MSA-BT1 - Macron Dynamics - hydraulic / pneumatic / belt-driven - image - 5
Add to favorites
Compare this product


Characteristics

Movement
linear
Type
pneumatic, hydraulic
Technology
belt-driven, cylinder
Other characteristics
zero-backlash, horizontal transfer movement, vertical transfer movement
Stroke

Max.: 1,000 mm
(39.37 in)

Min.: 150 mm
(5.906 in)

Force

200 N

Speed

2,000 mm/s

Repeatability

0.03 mm
(0.0012 in)

Description

*Durable, cost-effective alternative for pneumatic and hydraulic cylinders and expensive rod style actuators *Zero backlash belt to pulley design *Extruded base profile allows multiple side mounting and attachment of elements using T-slot nut fasteners *Designed for fast, easy replacement of spare parts *Open design does not retain contaminants and debris
