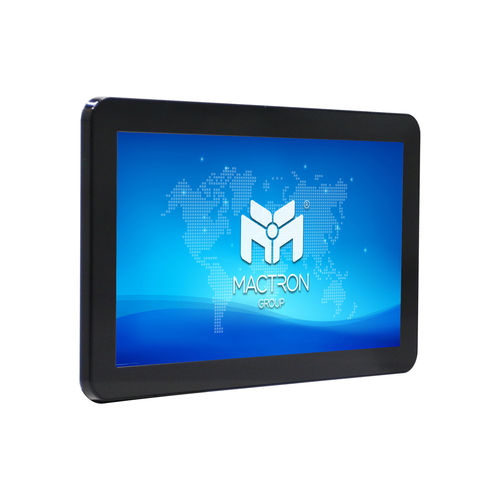

LCD panel PC WCA1012

TFT LCDtouch screen10.1"

Touch All-in-One System PPC Panel PC with Android Slim plastic housing & light weight design TFT LCD Panel True Flat with 10 point capacitive multi-touch type Rich I/O ports provide excellent peripheral connectivity Passive Cooling (fanless) Applications: Amusement and Entertainment Device, KIOSK, Self-service Terminal, Interactive Digital Signage, Gambling Machine, E-desk, etc. Display Type - 10.1" TFT LCD Resolution - 1280 x 800 pixel Brightness - 500 nits Contrast Ratio - 800 Viewing angle - H:170° /V:170° Touch screen type - Projected Capacitive touch (10 Points) Video format - MKV, TS, FLV, AVI, VOB, MPG, DAT, ASF, RM, MOV, 3GP, MP4, WMV Audio format - MP2, WMA, WAV, AAC, OGG, ASF Picture format - JPG, BMP, GIF CPU - Cortex-A17, Quad Core, up to 1.8 GHz GCPU - Mali-T764, with TE, ASTC, AFBC technology System Memory - 2GB DDR3 SDRAM Internal Storage Memory - 8GB eMMC External Storage Memory - SD Card (SDHC Class10 compatible) System I/O - 1 x Micro SD card slot 1 x USB2.0 (type A) 1 x Micro USB2.0 1 x Mini HDMI 1 x Add-on Module Slot (3 x USB 2.0) Ethernet - 1 x RJ45 port (optional – with PoE support) Wireless Communication - Wi-Fi IEEE802.11b/g/n module Bluetooth 4.2 OS Support - Android 8.1 Housing - ABS+PC System indicators - 1 x Power LED Physical Button - 1 x Power button, 5 x Function Key Camera - Front 2MP (optional) Speaker - 2 x 2W Power consumption - 1KHz audio playback etc. about 20W max., OFF 0W Input power spec. - AC 100-240Vac, 2A max. 50-60Hz, DC 12V ± 5% Dimensions - 252.1 mm x 177.8 mm x 24.0 mm Weight - 594.3 g Mounting - VESA 75x75 Warranty - 2 year
