LCD panel PC WCS2380
TFT LCDtouch screen23.8"

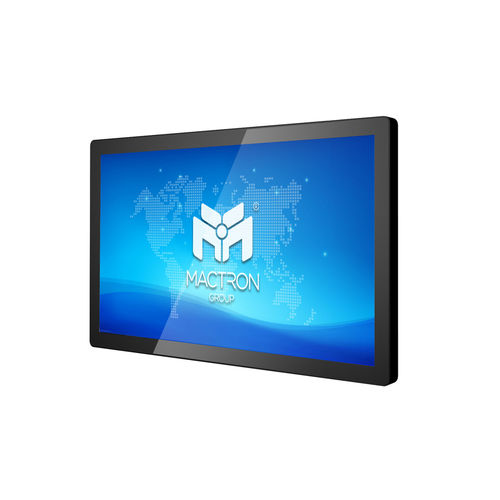

LCD panel PC - WCS2380 - MACTRON GROUP - TFT LCD / touch screen / 23.8"
LCD panel PC - WCS2380 - MACTRON GROUP - TFT LCD / touch screen / 23.8"
LCD panel PC - WCS2380 - MACTRON GROUP - TFT LCD / touch screen / 23.8" - image - 2
LCD panel PC - WCS2380 - MACTRON GROUP - TFT LCD / touch screen / 23.8" - image - 3
LCD panel PC - WCS2380 - MACTRON GROUP - TFT LCD / touch screen / 23.8" - image - 4
LCD panel PC - WCS2380 - MACTRON GROUP - TFT LCD / touch screen / 23.8" - image - 5
LCD panel PC - WCS2380 - MACTRON GROUP - TFT LCD / touch screen / 23.8" - image - 6
Add to favorites
Compare this product


Characteristics

Screen type
LCD, TFT LCD, touch screen
Display size
23.8"
Resolution
1920 x 1080, full HD
Processor
Intel® Braswell N3160
Operating system
Windows 10, Windows embedded
Construction
fanless
Mounting
kiosk
Applications
industrial
Other characteristics
all-in-one, wireless

Description

MACTRON 23.8" WCS Series is a Touch All-in-One System Fanless Panel PC PPC with Windows Slim Metal Housing & Light weight design 16:9 Full HD 1920 x 1080 resolution TFT LCD Panel True Flat with 10 point capacitive multi-touch type Rich I/O ports provide excellent peripheral connectivity Passive Cooling (fanless) 1 Pogo Pin landscape for optional accessories:MSR Reader, 2D Barcode scanner reader, NFC reader Display Type - 23.8" TFT LCD Resolution - 1920 x 1080 pixel Brightness - 250 nits Contrast Ratio - 1000 Viewing Angle - Horizontal 178° / Vertical 178° Touch screen type - Projected Capacitive (10 Points) Processor - Intel Celeron Processor N3160 Graphics - Intel HD Graphics Gen8 Memory - DDR3L 1600 4GB Standard Storage - 64GB M.2 2242 SSD TLC Audio - Realtek ALC282 System I/O - 1 x HDMI (Type C) 1 x SPDIF 2 x USB 3.0 1 x USB2.0 (Up side) 1 x Micro USB2.0 1 x SD Card Slot 1 x Combo JACK Ethernet - 1 x RJ45 10/100/1000 Mbps connector COM - 2 x RJ45 type (default 0V; 0V/5V/12V by jumper setting) Wireless Communication - Wi-Fi 802.11 b/g/n (optional) BT4.0 (optional) OS Support - Windows Embedded POSReady 7 (64bit) (optional) Windows Embedded Industry 8.1 (64bit) (optional) Windows 10 IoT (64bit) (optional) Housing - Metal System indicators - 1 x Power LED Physical Button - 1 x Power button, 5 x Function Key Speaker - 2 x 3W Power - Input: AC 100-240Vac,1.5A; 50-60Hz Output: DC 12Vdc/5A Energy Efficiency Rating - DOE Level VI RoHS - Yes Operating temperature - 0 ~ 40°C Storage temperature - -10 ~ 55°C Humidity - Storage: 10% ~ 90% (Non-Condensing) Dimensions - 576 x 345 x 43 mm Weight - 7.65 kg kg Mounting - VESA 100x100 Certification - CE,FCC Warranty - 2 year

Catalogs

WCS2380
WCS2380
2 Pages
