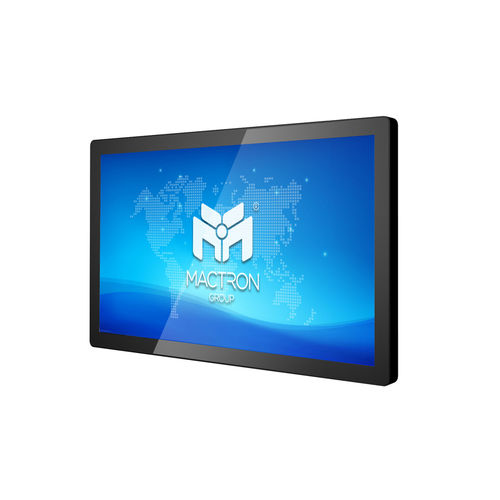

LCD monitor TCS2380

TFTtouchLED

With 16:9 PCAP touch technology, flat panel design, wide viewing angles and clear, cristal images makes more flexible and high integration. Support upto 1920X1080 Full HD resolution and offers multiple expansions. Slim Metal Housing Light weight design 16:9 Full HD 1920 x 1080 resolution TFT LCD Panel True Flat 10 point capacitive multi-touch type Applications: Amusement and Entertainment Device, KIOSK, Self-service Terminal, Interactive Digital Signage, Gambling Machine, E-desk, etc. Screen size - 23.8" Resolution - 1920 (RGB) x 1080 pixel Back-light - Lower edge side, 1-LED lighting Bar type Luminance - 250 (Typ.)(cd/m²) Contrast Ratio - 1000 Viewing Angle - Horizontal 178° / Vertical 178° Refresh Rate - 60Hz Work Mode - ADS, Normally Black, Transmissive Touch Interface - USB Touch Type - 10 point capacitive multi-touch CPU - Novatek 68862 SPI Flash - 2M bit System I/O - 1 x HDMI Type A 1 x USB (for Touch) 1 x Display Port 1 x VGA Port Housing - Metal System indicators - 1 x Power LED Physical Button - 1 x Power button, 5 x Function key Speaker - 2 x 5W Audio - 1 x Audio in Power - 60W (12V/5A) Operating temperature - 0°C ~ 40°C (32°F ~ 104°F) Storage temperature - -10°C ~ 55°C (14°F ~ 131°F) Humidity - Storage: 10% ~ 70% (Non-Condensing) RoHS - Yes Dimensions - 558.9mm x 346.4mm x 43.5mm Weight - 7.5kg Mounting - VESA 100x100 Certification - CE, FCC Warranty - 2 year
