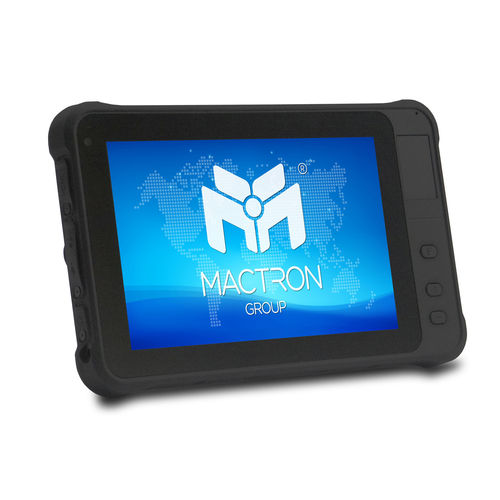

Android Base, High Brightness Rugged Mobile Tablet PC
7" Mobile Tablet
High Brightness
Support Android 9 system
Support wet-hand touch
Support Anti-Scratch Touch Panel
Support NXP NFC(13.56M)
Support 1D/2D Scanner
Support Fingerprint
Applications: Food Process, Robotics, Factory, HMI screening, Packaging, etc.
Display type - 7" IPS TFT LCD
Resolution - 1280 x 800
Brightness - 1000nit
Touch screen type - 5 points capacitive, G+G, 7H-Anti-scratch, 1.1mm, COF
CPU - MSM8953, 2.0GHz
GPU - Adreno 506
RAM - 4 GB LPDDR3
ROM - 64 GB
Network - 802.11a/b/g/n/ac (2.4G + 5.8G dual band WiFi)
Bluetooth 4.1 (BLE) class 1.5, transmission distance: 10m
4G
IO Ports - 1 x TF slot, max: 128G (SDHC/SDXC)
1 x SIM slot
1 x Micro USB 2.0 for OTG
1 x 3.5mm standard headphone jack
1 x HDMI 1.4a Type C
1 x DC jack
1 x 12pin POGO pin
Applications - 1D/2D Barcode Scanner (Optional)
NFC
Fingerprint (Optional)
UHF/HF (Optional)
ID Module (Optional)
GPS & Glonass
Operation System - Android 9
Camera - Front: 5.0MP camera; Rear: 13.0MP camera
Speaker - 1 x Embedded 8Ω/0.8W waterproof speaker (Built-in)
Mic - Sensitivity:-42db, output resistance 2.2kΩ (Built-in)
Sensor - G-sensor, Gyro sensor, Light sensor, Proximity sensor, Compass
Power Adapter - AC100V ~ 240V, 50Hz/60Hz, output DC 5V/3A
Battery - 7500mAh/3.7V (Built-in)
Using time - 7hrs (Default 50% volume, default 200nit, play 1080 HD video)
Rugged Feature - IP65, 1.2m drops
Operating Temperature - -10°C to 50°C
Storage Temperature - -30°C to 70°C
Humidity - 95% non-condensing
Dimensions - 213.5mm x 130mm x 18.3mm
Weight - 607g
