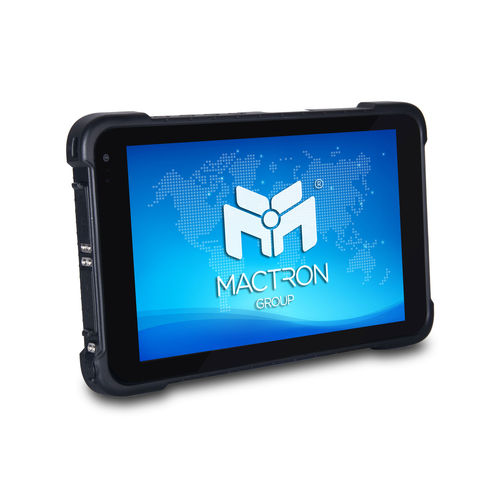

Windows Base, Rugged Mobile Tablet PC
8" Rugged Tablet
Support Windows 10 Home / Pro / Android 5.1
Support USB2.0
Support docking
Support NXP NFC(13.56M)
Support GPS
Support 1D/2D Barcode Scanner
Support IP-65
Support strap
Applications: Food Process, Robotics, Factory, HMI screening, Packaging, etc.
Display type - 8" IPS TFT LCD
Resolution - 1280 x 800
Brightness - 320nit
Touch screen type - 10 point capacitive, G+G, 7H-Anti-scratch, 1.1mm, COF
CPU - Intel Cherry Trail X5-Z8350, 1.44GHz
GPU - Intel HD Graphic (Gen7)
RAM - 4GB LPDDR3
ROM - 64GB
Network - 802.11 a/b/g/n/ac (2.4G + 5.8G dual band WiFi)
Bluetooth 4.1 class1.5, transmission distance:10m
4G LTE
IO Ports - 1 x TF slot, max:128G (SDHC/SDXC)
1 x SIM slot
1 x USB 2.0
1 x Micro USB 2.0 for OTG
1 x HDMI 1.4a Type C
1 x 3.5mm standard earphone jack
1 x DC jack
1 x 12pin POGO pin
Application - 1D / 2D Barcode Scanner (Optional)
NFC
GPS & Glonass
Operation System - Windows 10 (Optional)
Camera - Front: 2.0MP camera; Rear: 5.0MP camera
Speaker - 1 x Embedded 8Ω/0.8W waterproof speaker (Built-in)
Mic - Sensitivity:-42db, output resistance 2.2kΩ (Built-in)
Sensor - G-sensor
Power Adapter - AC100V ~ 240V, 50Hz/60Hz, output DC 5V/3A
Battery - 8500mAh/3.7V (3G,Built-in); 7800mAh/3.7V (4G,Built-in)
Using time - 8hrs (Default 50% volume, default 200nit, play 1080P HD video)
Rugged Feature - IP65, 1.2m drops
Operating Temperature - -10°C ~ 50°C
Storage Temperature - -30°C ~ 70°C
Humidity - 95% non-condensing
Dimensions - 225.6mm x 144.6mm x 21.5mm
Weight - 740g
