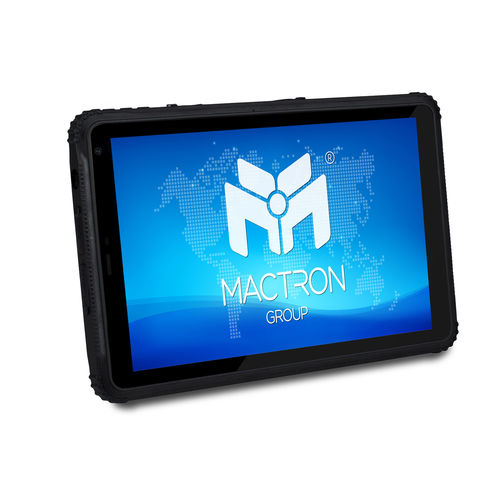

Rugged tablet MAS0805
PCWindows8"

Rugged tablet - MAS0805 - MACTRON GROUP - PC / Windows / 8"
Rugged tablet - MAS0805 - MACTRON GROUP - PC / Windows / 8"
Rugged tablet - MAS0805 - MACTRON GROUP - PC / Windows / 8" - image - 2
Rugged tablet - MAS0805 - MACTRON GROUP - PC / Windows / 8" - image - 3
Rugged tablet - MAS0805 - MACTRON GROUP - PC / Windows / 8" - image - 4
Rugged tablet - MAS0805 - MACTRON GROUP - PC / Windows / 8" - image - 5
Add to favorites
Compare this product


Characteristics

Type
PC, Windows
Display size
8"
Processor
Intel® Atom™ x5-Z8350
Memory
2 GB, 32 GB
Protection level
rugged, waterproof, scratch-proof, IP65
Connectivity
wireless, GPS
Screen type
multitouch screen, capacitive touch screen
Integrated peripheral
with NFC reader
Other characteristics
fanless, slim

Description

Windows Base, Slim Version, Rugged Mobile Tablet PC Support Windows 10 system Operating temperature: -10°C to 50°C Support standard USB2.0 OTG connector Support NXP NFC (13.56M) Support GPS navigation Rugged IP65 protection level Support high strength Glass Touch Panel Support Wrist Strap Applications: Food Process, Robotics, Factory, HMI screening, Packaging, etc. Display type - 8" IPS TFT LCD Resolution- 1280 x 800 Brightness - 450nit Touch screen type - 10 points capacitive, G+G, 7H-Anti-scratch, 1.1mm, COF CPU - Intel Cherry Trail X5-Z8350, 1.44GHz GPU - Intel HD Graphic (Gen7) RAM - 2GB LPDDR3 ROM - 32GB Network - 802.11a/b/g/n/ac (2.4G + 5.8G dual band WiFi) Bluetooth 4.2 (BLE) class 1, transmission distance: 10m 4G IO Ports - 1 x TF slot, max:128G (SDHC/SDXC) 1 x SIM slot 1 x Micro USB 2.0 for OTG 1 x HDMI 1.4a Type C 1 x 3.5mm standard earphone jack 1 x DC jack Application - NFC GPS & Glonass Operation System - Windows 10 (Optional) Camera - Front:2.0MP camera; Rear: 5.0MP camera Speaker - 1 x Embedded 8Ω/0.8W waterproof speaker (Built-in) Mic - Sensitivity:-42db, output resistance2.2kΩ (Built-in) Sensor - G-sensor Power Adapter - AC100V ~ 240V, 50Hz/60Hz output DC 5V/3A Battery - 7500mAh/3.7V(could not be removed) Using time - 7hrs (Default 50% volume, default 200nit, play 1080 HD video) Rugged Feature - IP65, 1.2m drop Operating Temperature - -10°C ~ 50°C Storage Temperature - -30°C ~ 70°C Humidity - 95% non-condensing Dimensions - 220mm x 143.4mm x 15.7mm Weight - 647g

Catalogs

MAS0805
MAS0805
2 Pages
