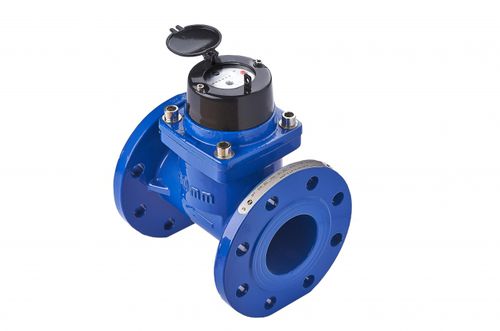

Analog water meter WT
Add to favorites
Compare this product
Characteristics
- Display
- analog
Description
WT
Tangential paddle wheel irrigation water meter with
interchangeable mechanism
· Cast iron body, flanged PN10 or PN16; epoxy powder coated
· Magnetic drive
· Working temperature: 50°C
· Direct reading on numbered drums
· Special condensation-proof, 360° rotatable dial
· Horizontal, vertical or inclined installation
· Pre-equipped for two pulse outputs
· Tangential paddle wheel located at the top of the water passage
· Lockable metal lid
· Size: 50 mm - 200 mm
· Measuring accuracy: +/- 2% between Q2 and Q4 and +/- 5% between Q1 and Q2 (excluded) as per current standards.
Catalogs
IRRIGATION
20 Pages
