High-voltage detector DETECT LINE NG

positive displacementelectrical linewith audible alarm

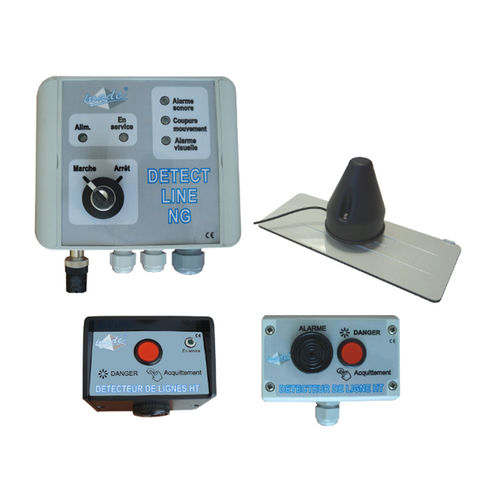

DETECT LINE NG is a system dedicated to the prevention of accidents due to overhead power lines. It consists of a control and processing module, connected to a sensor, which detects the proximity of a medium or high voltage electricity line around a vehicle. PRESENTATION DETECT LINE NG is composed of a central processing unit connected to an antenna. The processing unit is usually installed within the cabin. The sensor antenna must be placed on the roof of the cabin. Two boxes of visualization and acknowledgment are installed inside and outside the cabin. OPERATION DETECT LINE NG senses the electric field around a high voltage power line. DETECT LINE NG alerts the user with an audible signal and a warning light when the vehicle enters a danger area (20 to 30 meters configurable distance from a higt voltage power line) After the system has detected an electric line, it can be acknowledged on the central unit one of the two visualization and acknowledgment boxes and set in «vigilance» mode, in which a sound alert is emitted at regular intervals to indicate the danger. This mode will maintain the operator’s vigilance as long as the vehicle stays in the danger area.
