High-voltage detector SKY NG RADIO

electrical linewith audible alarmwith visual alarm

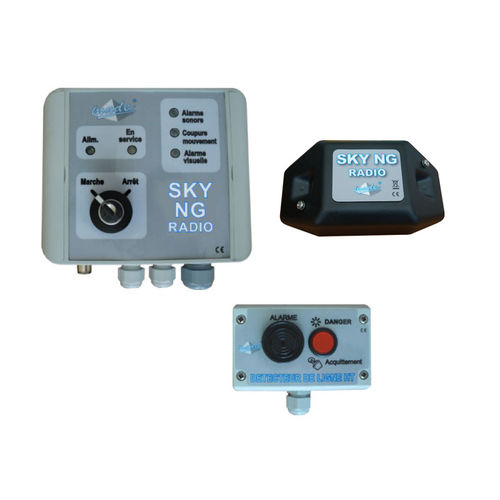

SKY NG RADIO is a detector of high voltage lines : MV ( 50 kV). SKY NG RADIO warns the user with an acoustic and visual signal when the lifting device enters a danger zone at a distance between 3 and 6 m of a high voltage line. PRESENTATION SKY NG RADIO works on the principle of proximity detection with several sensors, depending on the number of arms of the machine which communicate permanently with the central unit placed in the basket. The communication between the CU and the sensors is by radio. A box of visualization and acknowledgment of the signal is placed in the basket. The temporary blockade of the movements can also be proposed (dry contact available). OPERATION SKY NG RADIO starts when the basket starts. The detection of the electric field turns on the acoustic and visual alarm and provokes the blockade of the movement (with effective cabling). The driver can turn off the acoustic alarm and the movement blockade (if effective) for a duration of 20 minutes by pushing the button “call-back mode”. The light remains active. A sound alert will then be emitted regularly (every 30 seconds) to indicate the danger. After 20 minutes, the system resets.
