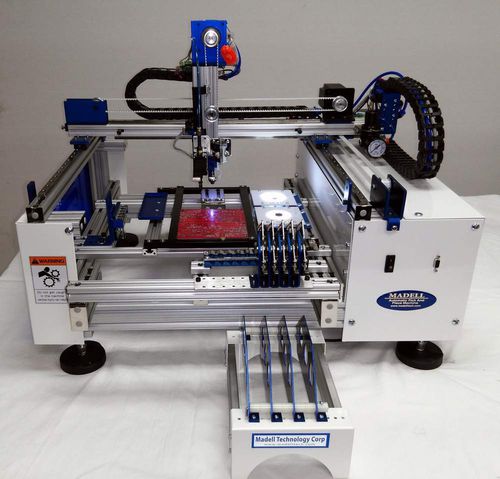

SMT pick-and-place machine Mini-X2

automatic

Small desktop automatic pick and place machine with full vision. Features: 2000 estimated pph(parts per hour) 300mm x 420mm working area Placement of 0201 standard Computer vision automatic centering system for IC's (SOP, QFP, BGA) and better placement of small parts, software fly vision centering, included Smart Vision: no need of reference or template pictures for most SMT parts; IC is centered as a whole part and also based on pins. Accurate and easy to use Fully programmable digital Z-axis and Theta rotation angles X and Y axis 0.01mm resolution, 0.045° rotational resolution Stepper motors 30 max. 8mm feeder capacity Automatic PCB board position correction with fiducial recognition included CAD file convert function 12 month full factory warranty - parts & labor Easy to use graphic software for quick programming. Programming can be done with teaching video camera, on screen Gerber file graphics or CAD file 110V AC 60Hz, or 220 V AC, 50Hz, 1500 watts electrical Use a vacuum pump or 60 psi shop air 80 pounds MADE IN USA
