Analog pressure gauge 222005
G 1/8brassBourdon tube

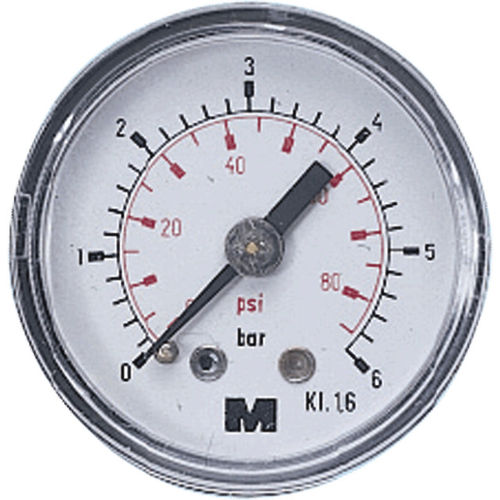

Analog pressure gauge - 222005  - Mader - G 1/8 / brass / Bourdon tube
Analog pressure gauge - 222005  - Mader - G 1/8 / brass / Bourdon tube
Add to favorites
Compare this product


Characteristics

Display
analog
Process connection
G 1/8
Material
brass
Technology
Bourdon tube
Applications
for gas, for liquids
Pressure

Max.: 25 bar
(362.59 psi)

Min.: -1 bar
(-14.5 psi)

Dial diameter

40 mm
(1.6 in)

Process temperature

Max.: 60 °C
(140 °F)

Min.: -20 °C
(-4 °F)

Description

Standard Bourdon tube pressure gauge nominal size 40, axial Producer Application: for gaseous and fluid, non high-viscosity and non-crystallizing media, which do not pit copper alloys Range of application: Dead load: 3/4 x full scale value dynamic load: 2/3 x full scale value accuracy: Class 1,6 (EN 837 - 1/6) Material of casing: Sheet steel Material of cover plate: Polymer, clipped Measuring element: Circular spring Material of measuring element: Copper alloy Connection: G 1/8 MS Mounting: axial Material of dial: Polymer, white, bar-scaling black (DIN16109), psi-scaling red Material of indicator: Polymer, black Material of indicator work: Brass design Temperature behaviour: Display error when there is a deviation from the standard temperature +20 °C at the measuring system: if there is a increase/decrease of temperature ±0,4 %/10K from the respective scale value Price information: Due to price increases on the raw materials market, some items include a surcharge
