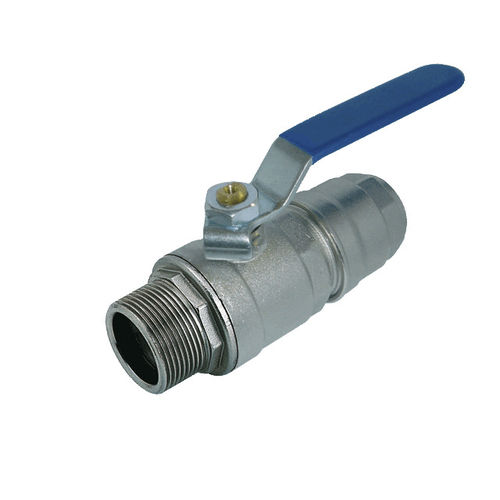

Ball valve 261802manualfor compressed airfor gas
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Media
- for gas, for compressed air
- Body
- threaded, stainless steel, nickel-plated brass
- Applications
- vacuum
- Number of channels
- 2/2-way
- Other characteristics
- locking
- DN
15 mm, 20 mm
(0.591 in, 0.787 in)- Pressure
Max.: 16 bar
(232.1 psi)Min.: -1 bar
(-14.5 psi)- Temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description
Material of casing:
Brass nickel-plated
Material of nut:
Brass nickel-plated
Material of seal:
NBR
Material of locking ring:
Stainless steel 1.4301
Material of O-ring:
NBR
Material of retaining ring:
Technopolymer
Type:
valve
Price information:
Due to price increases on the raw materials market, some items include a surcharge
