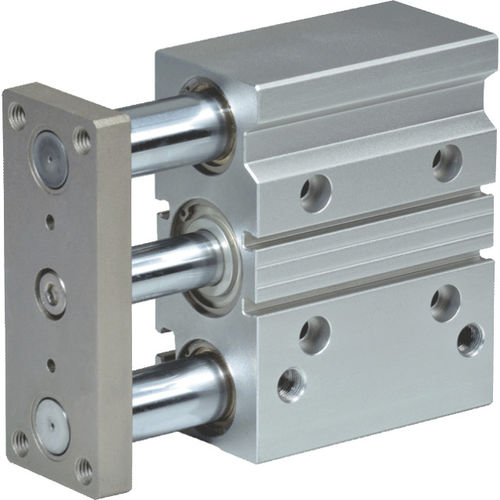

Pneumatic cylinder FDG seriescylinderpistondouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Technology
- piston, cylinder
- Configuration
- double-acting
- Material
- anodized aluminum, cast iron
- Other characteristics
- guided
- Stroke
Min.: 10 mm
(0.394 in)Max.: 250 mm
(9.843 in)- Pressure
Min.: 1 bar
(14.5 psi)Max.: 10 bar
(145 psi)- Rod diameter
Min.: 12 mm
(0 in)Max.: 25 mm
(1 in)- Fluid temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description
Guided cylinder type FDG with plain bearing
Guide:
Plain bearing
Construction type:
Piston rod cylinder
Cushioning:
Elastic cushionung on both sides
Position sensing:
for proximity switch in T-slot
Operating medium:
Filtered, dried air, lubricated or non-lubricated
Mounting position:
arbitrary
Mounting type:
Through-hole, female thread
Material of yoke plate:
Spheroidal graphite cast iron
Material of seals:
NBR
Price information:
Due to price increases on the raw materials market, some items include a surcharge
