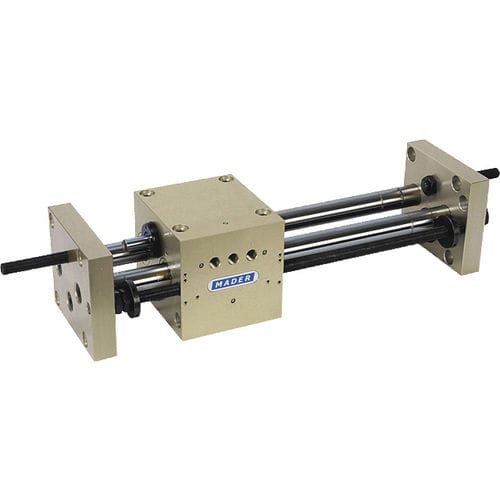

Drive unit LE-K-K-9-25

Drive unit - LE-K-K-9-25 - Mader
Drive unit - LE-K-K-9-25 - Mader
Add to favorites
Compare this product


Description

Bearing load: 80 – 180 N Stroke force: 220 N (at 6 bar) Repeating accuracy: ±0,02 mm Spindle version: Pneumatic end-position cushioning included in the scope of delivery Cylinder-Ø: 25 mm Retraction force at 6 bar: 170 N Drive: Compressed air (4 – 8 bar), steady, filtered (10 µm) and dried, lubricated or unlubricated Control: 4/2- or 5/2-way valve Connection: R1/8 Material of casing: High-strength aluminium, anodised Movement type: translatory Price information: Due to price increases on the raw materials market, some items include a surcharge

Catalogs

No catalogs are available for this product.

See all of Mader‘s catalogs
