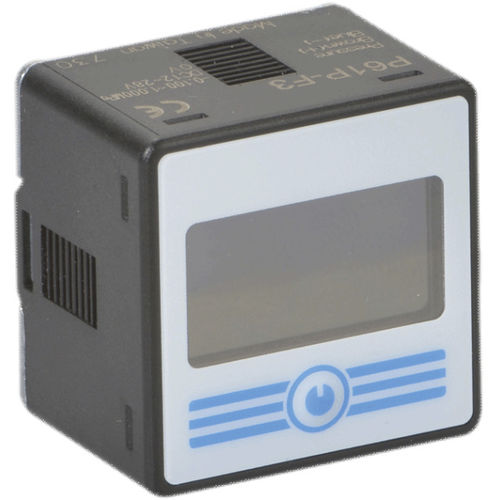

Digital pressure gauge 287986 threadedIP65for air
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Mounting
- threaded
- Protection level
- IP65
- Applications
- for air
- Pressure
3 bar, 15 bar
(43.51 psi, 217.56 psi)- Precision
0.2 %, 1 %
- Process temperature
Min.: 0 °C
(32 °F)Max.: 50 °C
(122 °F)
Description
Medium:
Filtered, not corrosive compressed air, neutral gases
Mounting position:
Arbitrary
Mounting type:
Line fitting or panel mounting
Material of casing:
Polymer
Material of threaded fitting:
Die-cast zinc
Type of seal at threaded plug:
O-ring
Power supply:
Battery
Supply voltage:
3 V DC
Battery type:
CR2032, included in the scope of delivery
Battery lifetime:
ca. 1 year at 5 readings / day
Display type:
LC-display with backlight, two lines
Indicator accuracy:
±2 % FS; ±1 display step
International approval:
CE
Other functions:
kPa, Mpa, kgf/cm², bar, psi selectable; power saving mode by automatic shutdown after 60 s
Price information:
Due to price increases on the raw materials market, some items include a surcharge
