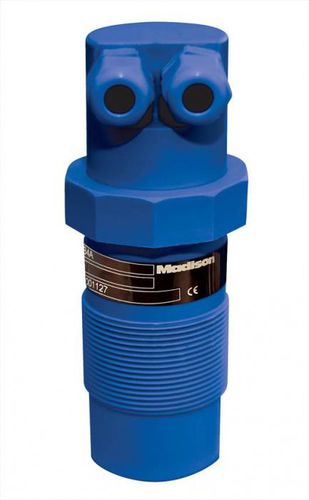

Ultrasonic level sensor U5098
for waterfor fuelfor oil

ultrasonic level sensor
ultrasonic level sensor
Add to favorites
Compare this product


Characteristics

Technology
ultrasonic
Medium
for water, for fuel, for oil, for sludge
Interface
4-20 mA
Applications
for storage tanks, for silos
Other characteristics
programmable, temperature-compensated
Level range

32'00"
(9.75 m)

Description

The new U5098 ultrasonic sensors provide non-contact continuous level measurement of challenging medias such as sticky, semi-solid, corrosive, and viscous fluids, slurries and even some solids. The U5098 line of sensors can be used indoors or outdoors, are low maintenance and can be cost-effective in difficult applications. U5098 Ultrasonic Sensor Features: Sensing ranges up to 32 feet for commercial, light industrial applications Various input power options: 120, 240 and 22 - 27 VAC, and 20 - 30 VDC Can be combined with Madison panel meters for a readily available way to read the 4-20mA output 2 programmable relays capable of 3 amps each for switching controllers, valves, small pumps, etc. Bench-or field-calibrated through a push button on the sensor or communications with a PC for calibration on the spot or remotely Temperature-compensated signal for improved accuracy These sensors are particularly well suited for demanding applications such as: Water and wastewater Fuel/oil measurement Storage and dispensing silos Tanks with heavy agitation Food and beverage processing Energy
