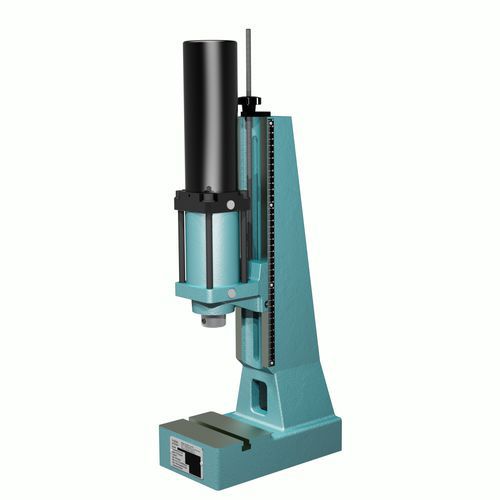

Pneumatic press L-DA 450 seriesformingtoggleram
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Function
- forming
- Structure
- toggle, ram
- Force
4.5 kN
- Stroke
Max.: 120 mm
(4.724 in)Min.: 40 mm
(1.575 in)- Table width
115 mm
(5 in)- Table length
157 mm
(6 in)- Weight
34 kg
(75 lb)
Description
Throat [mm] A1: - 80
Troat [mm] A2: - 0
T-slot [mm] similar to DIN 650: - 12
Ram bore Øxdepth [mm]: - 20H7 x 25
Ram Ø [mm] / Surface F [mm²]: - 40
Space required CxG [mm]: - 155 x 220
