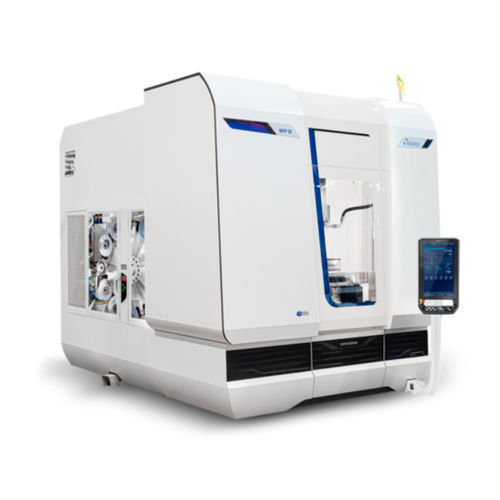

Workpiece grinding center MFP 50

CNC5-axis6-axis

The MÄGERLE MFP 50 combines flexibility and performance in a compact design. As a 5 or 6-axis system, this CD grinding and machining center shows its top form when dealing with challenging workpieces. The high axis speed, minimal auxiliary times and quick tooling change make the MFP 50 one of the most productive machines of its kind. Processes such as grinding, cutting and drilling can be achieved to absolute perfection in a single clamping. High productive benefit with simple operation are the result. The intelligent design principle takes production quality, safety and cost efficiency to a new level. The coolant nozzle, controllable via two axes, allows unrestricted freedom of movement and precise positioning of the coolant jet. Spindle speeds of up to 10,000 revolutions per minute guarantee the highest machining precision. The grinding wheels are always mounted right at the front of the spindle, and the profile is changed through automatic positioning of the diamond rolls in the direction of the Z-axis. This allows a generous machining clearance, as collisions between wheel flange and workpiece are practically excluded. In the MFP 50 the grinding wheel diameter is used to the maximum, resulting in significant cost savings. Suitable for multiple-side and complete machining Interfaces for automated cell production with robot connection 24-position tool changer Automatic overhead dressing Grinding, milling, drilling and measuring in a single clamping Compact 5/6-axis grinding center Hardware / Software C.O.R.E. – Customer Oriented REvolution Your Benefits Intuitive, user-friendly, and efficient operation
