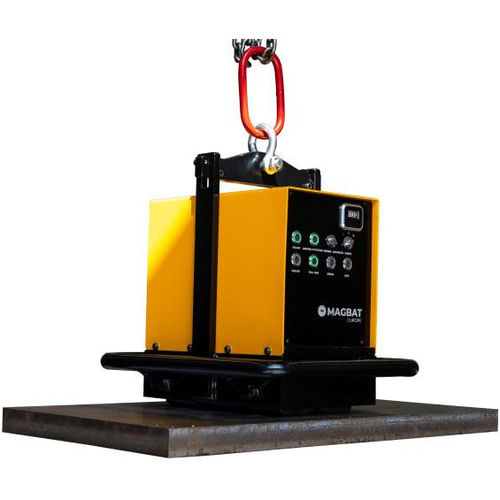

Electrically switched electro-permanent lifting magnet HBEP series

for flat and cylindrical loadsbattery

Thanks to the integrated rechargeable battery group, this revolutionary electro permanent lifting magnet functions completely autonomously. A Power Supply Cable is not required. The 1 second electric current pulse is only used to invert the magnet on a molecularly level. The effective force is generated by permanent magnets. Because the magnet is not dependent on the electric current, it is 100% safe. Due to the low power consumption, the battery has an autonomy of over 700 cycles. Charging the battery by means of the built-in charger (230V / 50Hz) takes between 5 and 8 hours, depending on the model. NEW: Automatic cycle for fast unloading of cutting machines. The MOST SAFE LIFTING MAGNET • - Electro permanent magnet technology independent of the electric current = 100% safe • - Safety factor 3:1 • - An inductive proximity switch, activated by the lifting mechanism prevents accidental demagnetization in the air. • - Integrated "PICK-UP" cycle at lower Force, followed by FULLMAG. • - Digital illuminated push buttons for indication of the status of the magnet. • - Radio remote control which prevents the operator from getting close to the load. • - Continuous battery monitoring. At low battery voltage, only demagnetization can be done. • - All around protection rail.
