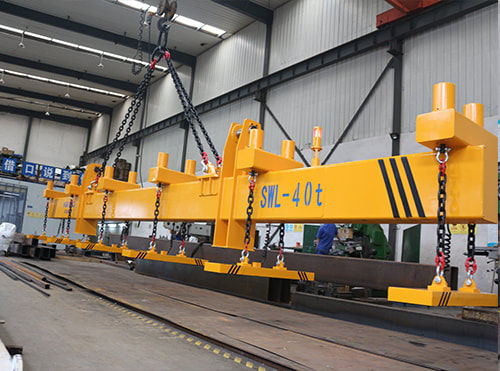

Single steel sheets lifting beam HM1 series

fixedAC-powerelectro-permanent

Lifting of long Steel Sheets is a difficult- and time consuming Operation. In addition, thin Steel Sheets are very flexible, which makes moving very dangerous. The HM1 series of electro permanent magnetic Beams offer an answer to this problem. The welded Beam of construction steel is equipped with a number of electro permanent magnetic Modules, which are each elastically suspended, for a perfect adaptation to the Steel Sheet. The electronic control Unit is equipped with a selector switch that allows to activate/deactivate a number of magnetic modules.. The PICK-UP cycle grants the lifting of 1 single Steel Sheet. Control via the integrated digital push Buttons or with the standard supplied Radio remote Control.​ THE MOST SAFE LIFTING MAGNET • - Electro permanent magnetic Technology independent of the electric Current = 100% safe. • - Safety Factor 3:1 • - An inductive proximity Switch mounted on the lifting Mechanism prevents accidental demagnetization in the air. • - Integrated "PICK-UP" Cycle at lower Force (4 levels) for picking up thin Steeplates, followed by FULLMAG. • - Digital illuminated push Buttons for easy and clear Operation. • - Simultaneous 2-button operation to demagnetize. • - Lamp block for indication of the Status of the Magnet. • - Radio remote control which prevents the operator from getting close to the load.
