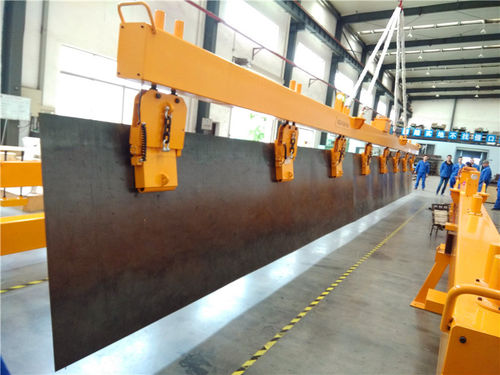

Single steel sheets lifting beam HM4 series

verticalAC-powerelectro-permanent

The HM4 series electro permanent magnetic Beams have been specially developed for manipulating Steel Sheets, from horizontal to vertical position, and vice versa, without compressing and / or deforming the Steel Sheet. They are the ideal solution for lifting and transporting Steel Sheets in vertical and horizontal orientation. Due to the compact construction, the ultra-slim magnet modules fit perfectly between the vertical uprights of your Steel Sheet warehouse. The electronic control unit is equipped with a selector switch with which several magnet modules can be activated, depending on the length of the Steel Sheet. Lifting of one single Steel Sheet is guaranteed by the "PICK-UP" cycle. ​Control via the integrated digital push Buttons or with the standard supplied Radio remote Control.​ THE MOST SAFE LIFTING MAGNET • - Electro permanent magnetic Technology independent of the electric Current = 100% safe. • - Safety Factor 3:1 • - An inductive proximity Switch mounted on the lifting Mechanism prevents accidental demagnetization in the air. • - Integrated "PICK-UP" Cycle at lower Force (4 levels) for picking up thin Steeplates, followed by FULLMAG. • - Digital illuminated push Buttons for easy and clear Operation. • - Simultaneous 2-button operation to demagnetize. • - Lamp block for indication of the Status of the Magnet. • - Radio remote control which prevents the operator from getting close to the load.
