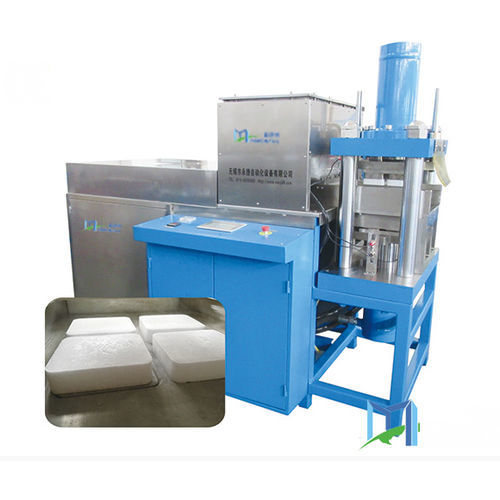

Dry ice reformer with touch screen YGCX-4000

Dry ice reformer with touch screen - YGCX-4000 - Magicball Technology(Wuxi)Co.,Ltd
Dry ice reformer with touch screen - YGCX-4000 - Magicball Technology(Wuxi)Co.,Ltd
Dry ice reformer with touch screen - YGCX-4000 - Magicball Technology(Wuxi)Co.,Ltd - image - 2
Dry ice reformer with touch screen - YGCX-4000 - Magicball Technology(Wuxi)Co.,Ltd - image - 3
Dry ice reformer with touch screen - YGCX-4000 - Magicball Technology(Wuxi)Co.,Ltd - image - 4
Dry ice reformer with touch screen - YGCX-4000 - Magicball Technology(Wuxi)Co.,Ltd - image - 5
Add to favorites
Compare this product


Characteristics

Type
with touch screen
Mass flow rate

Min.: 800 kg/h
(1,764 lb/h)

Max.: 1,200 kg/h
(2,646 lb/h)

Description

The Magicball YGCX-4000 Dry ice pellet-to-slice reformer make the small particles dry ice to be compressed into small pieces of dry ice 450 times per hour can be compressed,the production of dry ice is mainly applied to low temperature preservation and transportation industries Feature: ★ OMRON PLC and touch screen enable automation and digital production; ★ The stainless steel housing resists long-term corrosion of the condensate; ★ Adopt low noise digital servo control system; ★ Advanced technology makes dry ice conversion rate higher than 42%; ★ The use of cold gas from the exhaust gas to cool the oil temperature greatly reduces energy consumption; Complete System Reference: Dry ice pelletier machine + Dry ice reformer It is a set of full-automatic production equipment from liquid CO2 to dry ice slice, with large capacity, full automation, and stable performance. Dry Ice Size Ⅰ---250g/pcs Length:95mm Width:95mm Thickness: ( 10-60 )mm The length and width are fixed and the thickness can be adjusted. This kind of dry ice reformer can produce 9 pieces of dry ice slice at one time. For example: Length:95mm, Width:95mm, Thickness:20mm. Dry ice slice about 250g/pcs Dry Ice Size Ⅱ---500g/pcs Length:125mm Width:105mm Thickness:(10-60)mm The length and width are fixed and the thickness can be adjusted. This kind of dry ice reformer can produce 6 pieces of dry ice slice at one time. For example: Length:125mm, Width:105mm, Thickness:25mm. Dry ice block slice 500g/pcs Dry Ice Size Ⅲ---1000g/pcs Length:125mm Width:105mm Thickness:(10-60)mm The length and width are fixed and the thickness can be adjusted.

Catalogs

YGCX-4000
YGCX-4000
1 Pages
