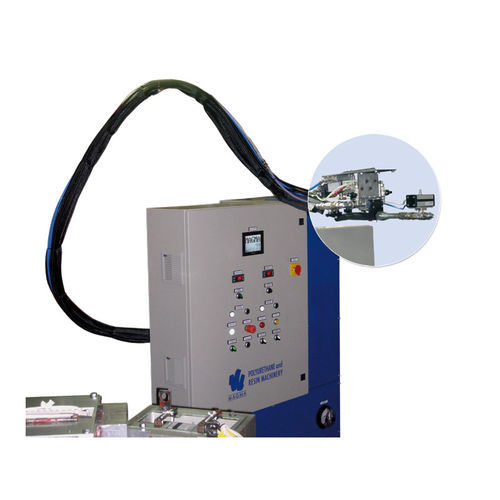

Dynamic mixer MP-TR

batchcontinuoussolid/liquid

The machine MP TR was developed after several tests directly in the production line.We have reached by this way a high level technology and a know-how making it a landmark in the mixing and dispensing field, also with vacuum system, of bi-component filled resins. Compared to the traditional system, which foresees the batch preparation, the continuous resin dispensing has given lab results of a higher quality with the advantage to have an immediate and continuous availability of mixed product. The MP TR mounts a recycling head so to have the product with output, ratio and viscosity perfectly stabilized allowing the constant reaction times of the resins. The standard foresees a dynamic mixing system with tolerances studied to avoid blockages due to the fillers into the products. The pressure that it is possible to have into the mixer reaches 40 bar not to have any problem in case of vacuum dispensing [1]. The dosing and dispensing are operated by rotative pumps [2] subjected to a special hardened treatment especially effected to be able to work with filled materials. The high output that it is possible to reach in the dispensing allows to perform the work in a very short time. The plant is dimensioned to work with medium pressure, so to have also the possibility to perform works of injection of materials into the molds. The maintenance is really reduced and it is no longer needed to stop the plant for the cleaning of the mixing tanks, which will be used only to heat and degas the used materials.
