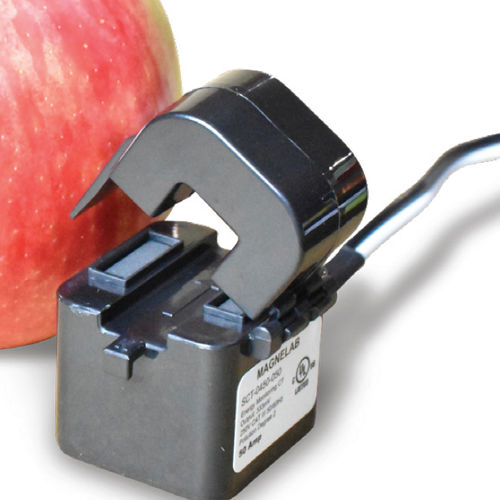

Current transformer SCT-0450-050split-corefor energy meterssolar
Add to favorites
Compare this product
Characteristics
- Type
- current
- Configuration
- split-core
- Applications
- for energy meters, solar
- Norms
- IEC
- Other characteristics
- AC, compact, openable
- Primary current
50 A
Description
Current Sensor Features
·UL-Listed
·Output 0.333 Volt AC at rated current
·Operates from 50 Hz to 400 Hz
·Phase displacement < 1.0° at rated current
·Accuracy Class 1.0
·8 ft. 18 AWG white/black leads
·Rated input of 50 Amp
·Custom output and other parameters are available
Description
Magnelab’s new UL-Listed SCT-0450-050 split-core sensor measures AC current up to 60 Amps. The SCT-0450-050 meets IEC 61869-2 Class 1.0 and is UL-Listed according to UL 2808. The SCT-0450-050 is compact, performs well and is easy to install around existing conductors.
APPLICATIONS
• Energy and sub-metering
• Electrical load monitoring
• Network equipment
• Instruments and sensors
• Control systems
• Solar and renewable energy
