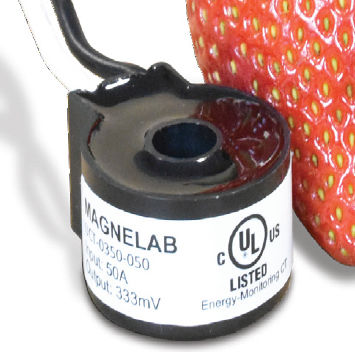

Transformer current sensor UCT-0350-050

ACsolid-core

Current Sensor Features ·UL-Listed ·Output 0.333 Volt AC at rated current ·Operates from 50 Hz to 400 Hz ·Phase displacement < 0.085° at rated current ·Accuracy Class 0.2 ·8 ft. 18 AWG white/black leads ·Rated input of 50 Amp ·Custom output and other parameters are available Description Magnelab’s new UL-Listed UCT-0350-050 solid-core sensor measures AC current up to 60 Amps (120% of 50A). The UCT-0350-050 meets IEC 61869-2 Class 0.2 and is UL-Listed according to UL 2808. The UCT-0350-050 is compact, performs well and is perfect for new installations. APPLICATIONS • Energy and sub-metering • Electrical load monitoring • Network equipment • Instruments and sensors • Control systems • Solar and renewable energy
