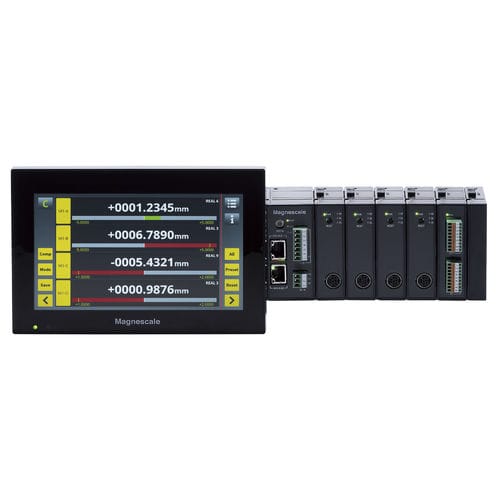

Position indicator LT80

currentspeeddigital

Clear and easy to use HMI functions 7-inch touch screen LCD display Multiple measurement modes (current value, MIN, MAX P-P, ADD/SUB.) Can be used for defective part identification, trend management, part sorting and tolerance judgement by using 2 or 4 state comparator function Displays I/O status Three data storage and parameter setting options (SD card, USB, and Ethernet) Multiligual support (Japanese, English, German) Expandable multi-axis measurement module system Connect up to 32 Magnescale DK- or DT-series gauges (via MT adaptor) DIN rail mount for easy installation (MG80 and LZ80) High speed latch (via MG80-LM latch module) -Synchronized angle and position measurement is available*1 by connecting a linear or rotary encoder*2 *1 16 axes max. *2 Requires A/B Quadrature encoder signal (EIA-422 compliant). -Latching data with specific angles or distances can be saved to the LT80. LZ80 I/O module Equipped with 8 inputs and 8 outputs Functions can be assigned freely from LT80 Up to two MG80 I/O modules can be connected to one MG80-MA
