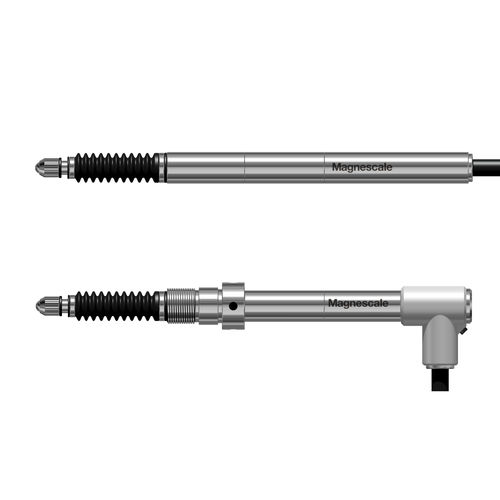

Linear measurement touch probe DK812SAR series

springpneumaticelectronic

Slim shape with stem diameter of Φ8 mm and high durability ball spline bearing. Our unique signal processing technology enables measurements that require high accuracy and real-time performance. Accuracy: 1 µm p-p to 1.7 µm p-p (Depends on the model) Maximum response speed: 80 m/min (resolution 0.1 µm), 250 m/min (resolution 0.5 µm) Bearing structure: Improved sliding performance through the use of highly durable ball spline bearings High durability: 320 million sliding cycles or more (under continuous evaluation as of January 2021) Protection grade: IP67 (straight type / right angle type with air tube) Built-in reference point Output signal: A/B/reference point (Voltage-differential line driver output) Flange type is also available for strong fixing.
