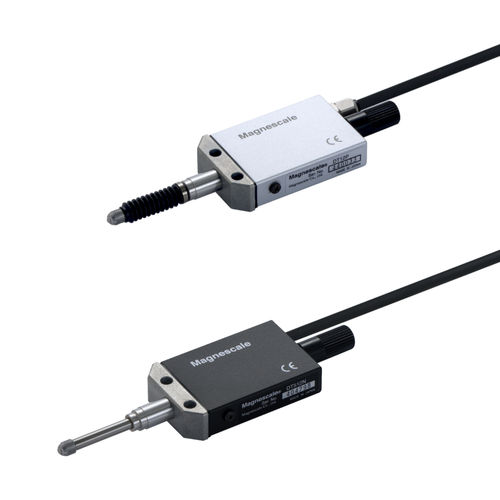

Linear measurement touch probe DT12 Series

springpneumaticelectronic

A general-purpose model that supports a wide range of applications from judgmental use such as assembly verification to dimensional measurement. It can be used for a wide range of applications while keeping costs low. Excellent resistance to workshop conditions : Equivalent to IP64 (P type) Accuracy : 6 µm p-p, 10 µm p-p (Depends on the measurement length and resolution.) Resistant to oil, water, dust, vibration, and shock. Supports Φ8 mm stem mounting and side mounting with M4 screws Tough against oil and dust Pneumatic push type is also available, in which the spindle is driven by air supply.
