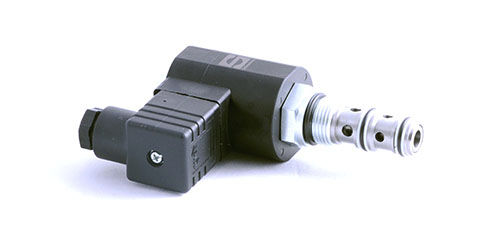

Direct-operated solenoid valve SV33-wayNCoil
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 3-way
- Function
- NC
- Medium
- oil
- Body
- seat, screw-in
- Other characteristics
- cartridge
- Temperature
Max.: 65 °C
(149 °F)Min.: -30 °C
(-22 °F)- Pressure
Max.: 350 bar
(5,076.3 psi)Min.: 0 bar
(0 psi)
Description
3/2-way solenoid seat valve
Screw-in cartridge valve: direkt
acting; flow at port 1 is blocked in de-
energized position; allows flow from
2 -> 3;
In the energized position flow is allo-
wed between port 1 and 2 while port
3 is blocked;
External parts galvanized; valve
parts hardened,grounded or honed.
Catalogs
SV3
1 Pages
