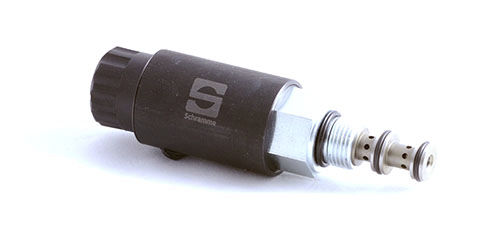

Slide valve

pressure-controlfor oil3-way

Pressure-control valve The direct operated 3-way propor- tional pressure control valve; redu- ces an inlet’s pressure to a lower consumer pressure. The consumer pressure is propor- tionally adjustable to the solenoid current. Oil flows from port P to A until the setpoint pressure is reached, then the valve closes. The valve opens from P to A when the consumer pressure drops. If the setpoint pressure exceeds, the valve works as a pressure relief valve (three-way function). Oil will flow from port A to T until the set- point pressure is reached; Valve parts are hardened and grounded or honed; the leakage is extremely low.
