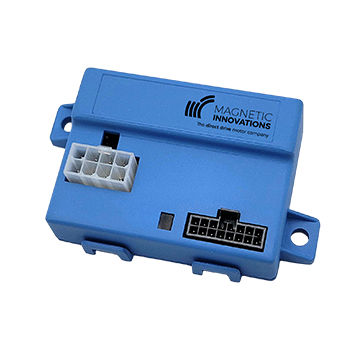

Single-phase motor controller linear arrayanalogdigital
Add to favorites
Compare this product
Characteristics
- AC/DC
- single-phase
- Motor type
- linear array
- Other characteristics
- digital, analog
- Input/output
- I/O
- Output voltage
48 V
Description
Magnetic Innovations’ Moving Magnet VCA series are matched with a dedicated motor controller which is able to establish sensorless position control (no external encoder required). Hence only 2 wires are required to power and position control the actuator. The controller is an encoder and drive in one package at the size of a matchbox which can power Moving Magnet VCA’s up to 1kW.
Features Motor Controller
• No encoder required
• 2-wire actuator control
• 48Vdc, 1kW drive power
• Digital I/O (4+4)
• Configurable Analog inputs (2) & outputs (2)
• Compatible w/all MI Moving Magnet VCA’s
• Canbus & Analog interface
• Matchbox size (86,5mm x 55mm x 21mm)
• HMI included
