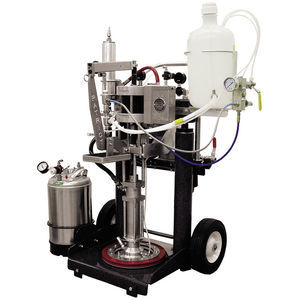

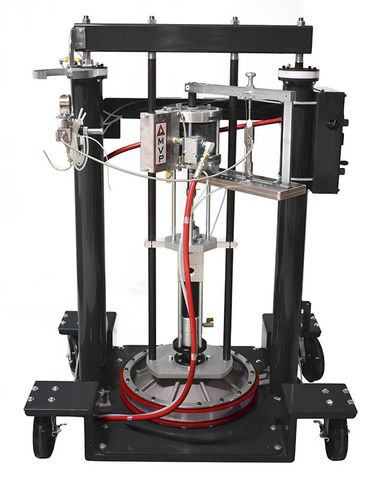

Single-component mixing and metering unit 55-GALLON

adhesivepistonfor robotic applications

Putty Systems Compact system that provides precise delivery of medium viscosity putty materials Our putty systems are tried and true. Providing a precise and steady flow of material, these systems are durable and easy to maintain to create increase production efficiency. Contact us today to learn more about our putty systems. 55-GALLON • Dependable Fluid Section Design: • Standard chop check fluid sections ideal for medium and high viscosity putty materials • Hardened rods and cylinders provide protection against corrosion and reduce maintenance needs Versatile System: • Durable linkage drive gives users ability to dispense materials with large range of catalyst percentage • Applicator tips allow the system to be set for pour, spray and splatter dispensing Specifications: • Output Capabilities: approximately 4 lbs/min – 16 lbs/min (1.8 kgs/min – 7.3 kgs/min) • Air Consumption: 25-30 CFM (0.7 – 0.9 m^3/min) Catalyst % Range: .5% – 2.5% by volume • Available Pump Ratio: 30:1 • Max Air Input Pressure: 100 psi (7 bar)
