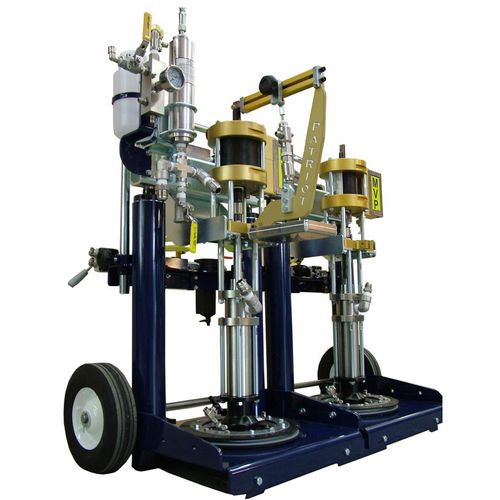

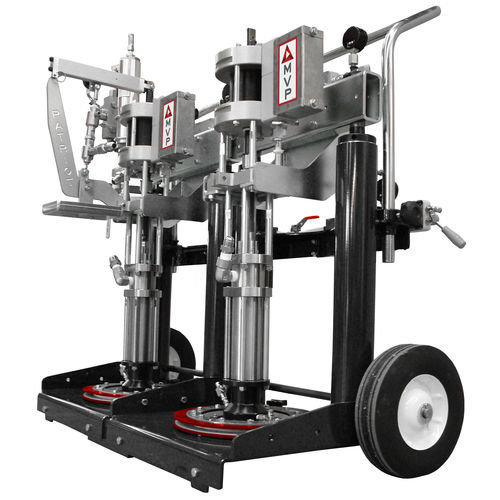

Adhesive mixing and metering unit PATRIOT™10-1

pistonhigh-precision

Accurate metering systems combined with robust pump design keeps production running and decreases downtime Material and accelerator pumps are linked together ensuring proper mix ratio is being achieved in a repeatable manner. This provides manufacturers consistent working times improving production output and limiting rework needs. Each system is capable of dispensing adhesive materials at variable mix ratios. Different configurations give users the ability to choose the proper output no matter the amount of material needed each day. 5-GALLON Output Capabilities: approximately 1 lb/min – 4 lbs/min (.45 kgs/min – 1.8 kgs/min) Air Consumption: 25-30 CFM (0.7 – 0.9 m^3/min) Mix Ratio Range: 7:1 – 19.6:1 by volume Available Pump Ratio: 23:1 Max Air Input Pressure: 100 psi (7 bar) 55-GALLON IMA-CCP-ADH-PRO & HOD Output Capabilities: approximately 4 lbs/min – 16 lbs/min (1.8 kgs/min – 7.3 kgs/min) Air Consumption: 25-30 CFM (0.7 – 0.9 m^3/min) Mix Ratio Range: 7:1 – 19.6:1 by volume Available Pump Ratio: 30:1 Max Air Input Pressure: 100 psi (7 bar)
